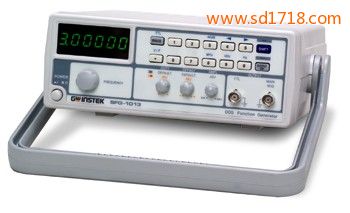

數位合成函數信號產生器
【型 號】SFG-1013
【品 牌】臺灣固緯GWINSTEK
【價 格】洽詢
【主要技術指標】Frequency Range:0.1Hz~3MHz
【詳細技術指標】
簡單介紹
· DDS
Technology and FPGA Chip Design
· Frequency Range:0.1Hz~3MHz
· High
Frequency Accuracy : ∮ 20ppm
· High Frequency Stability : ∮ 20ppm
· Max.
Frequency Resolution :100mHz
· Low Distortion Sine Wave:-55dBc,0.1Hz~200kHz
· Voltage Display
SFG-1013
數位合成函數信號產生器的詳細介紹
|
SFG-1000
Series, an economic function generator with high accuracy and high
stability output, is
designed based on the DDS (Direct Digital
Synthesized) technology embedded in a large scale FPGA.
The frequency
range of 3MHz and the output waveform selection of Sine, Square, Triangle
and TTL of
SFG-1000 Series adequately provide the fundamental features
to ensure high confidence for the test
results. The DDS technology at
an affordable price gives a high value solution to the users who need a
signal source for accurate but unsophisticated measurement
applications. |
|
MAIN |
|
Output
Function |
Sine,
Square, Triangle |
|
Frequency
Range
(For Sine, Square) |
0.1Hz~3MHz |
|
Frequency
Range
(For Triangle) |
0.1Hz~1MHz |
|
|
0.1Hz
Maximum |
|
Frequency
Stability |
∮ 20 ppm |
|
Frequency
Accuracy |
∮ 20 ppm
|
|
Frequency
Aging |
∮ 5 ppm /
year |
|
Amplitude
Range |
10Vp-p
(into 50?load) |
|
|
∮20% at
maximum position |
|
Impedance |
50?∮10? |
|
Attenuator |
-40dB∮1dB⊙1 |
|
DC
Offset |
≌-5V°≈+5V(into
50?load) |
|
Duty
Control Range |
25% to
75% below 1MHz (Square wave only) |
|
Display |
6-digit
LED display |
|
Output
Control |
ON/OFF
selector |
|
SINE WAVE |
|
Harmonics
Distortion |
From
Amplitude control at maximum position without any attenuation to
its
1/10 of any combination setting, TTL OFF
-55dBc, 0.1Hz ~
200kHz
-40dBc, 0.2MHz ~ 2MHz
-35dBc, 2MHz ~ 3MHz
|
|
Flatness
(at maximum amplitude relative to 1kHz) |
≌∮0.3dB,
0.1Hz ~ 1MHz
≌∮0.5dB,
1MHz ~ 2MHz
≌∮ 1dB,
2MHz ~ 3MHz |
|
TRIANGLE
WAVE |
|
Linear |
≠98?,0.1Hz°100kHz;≠95?,100kHz°1MHz
|
|
PSQUARE
WAVE |
|
Symmetry |
5% of
period +4ns to 0.1Hz°100kHz |
|
Rise or
Fall Time |
∝100ns at
maximum output. (into 50?load) |
|
TTL
OUTPUT |
|
Level |
≠3Vpp |
|
Fan
Out |
20 TTL
load |
|
Rise or
Fall Time |
∝25ns |
|
General |
|
Operation
Environment |
Indoor
use, altitude up ~ 2000m
Ambient Temperature 0? ~ 40?
Relative
Humidity: Up to 80% at 0~ 40?
Up to 70% at 35? ~ 40?
Installation
category II
Pollution Degree 2 |
|
POWER
SOURCE |
|
|
AC
240V/220V/110V∮10%,
50/60Hz |
|
STORAGE
CONDITION |
|
Temperature
|
-10? ~
70? |
|
Humidity |
70%
(Maximum) |
|
ACCESSORIES
|
|
|
User
manual ⊙
1
Power Cord x 1
GTL-101⊙
1 |
|
DIMENSION
& WEIGHT |
251(W)⊙91(H)⊙291(D)
mm
Approx. 2.1kg | |
，
，
